Supermarket Shelving & Shop Shelving - External Corner Shelving Bay

Shop Shelving & Supermarket Shelving

Supermarket Shelving & Shop Shelving - External Corner Shelving Bay
Product CodePrice each
(excl. VAT)
NB.Externalcorner1 POA*

* Price on application. Please contact us for more details.

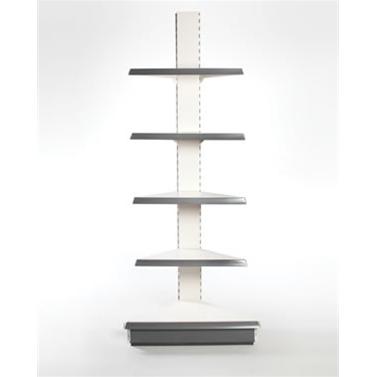

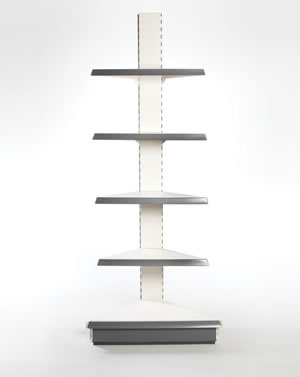

An external corner bay allows a run of shelving to continue around the outside of a 90 degree external wall.

Download Our Supermarket & Shop Shelving Brochure (takes around 30 second to download) for additional information and assembly instructions: (It takes around 30 seconds to download):

Click Here For Supermarket & Shop Shelving Brochure

BENEFITS

Easy and efficient to use. Compliments single sided wall bay runs. Utilises display space efficiently.

USEFUL INFORMATION

Please note Uprights 30, 60 & 80mm in depth are supplied 10mm longer than specified i.e. a 2200mm Upright is supplied at 2210mm in length. Remember to allow for foot adjustment when calculating ceiling heights. If using a Baseleg you need to deduct 100mm off the Upright height, i.e. 2100mm Upright including baseleg would leave 2000mm of back panel requirement. Please see below to the back panel configurations for all Upright heights.

PVC Top Caps and Gondola Covers can be used to finish the bay.

Ticket Moulding and Plinth colours can be matched on to the bay and available in several colours; Jura White, Silver, Dark Grey, Blue, Green, Red and Black.

We offer 2 and 3 hook brackets that give you the opportunity to adjust the shelves to sit at different angles on the bay. 2 hook brackets in 200, 250, 300 and 370mm depths can be adjusted to a 20 or 35 degree angle. 470/2 Hook brackets can only be adjusted to 20 degrees. 3 Hook brackets can be adjusted to 10 and 20 degrees but you cannot use a U-channel with the 3 Hook brackets.

Ticket Moulding can be cut to fit the shelf edge.

This bay is available in Jura and Silver.
